      printers-540x540-fs9530dn

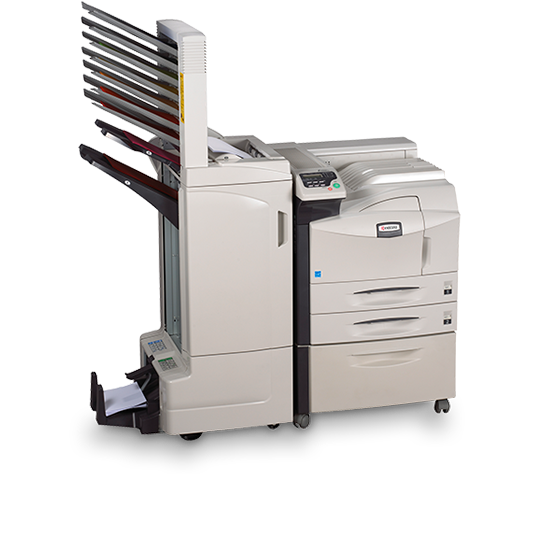

      FS-9530DN

      Wonderfully fast and reliable, the FS-9530DN printer also comes with a highly functional modular design that large departments need to get the entire job done. And with a print speed of 51 pages per minute in A4, the Kyocera FS-9530DN can handle large print volumes quickly and professionally.
      • 51ppm A4 and 26ppm A3 departmental printer
      • 128MB memory standard, upgradeable to 640MB
      • Duplex and network connectivity as standard
      • 100 department codes to track and control printer use
      • High volume paper options and versatile finishing features
      • Long-life components and easy maintenance
      • 2 years On-Site warranty as standard
      • FS-9530DN Drivers
      • FS-9530DN Documentation
      • FS-9530DN Software

      Main Specifications

      General
      • General
      • Paper Handling
      • Print
      printers-540x540-fs9530dn
      General type
      Printer monochrome A3
      Engine speed
      Up to 51/26 pages per minute A4/A3 simplex; up to 37/17 pages (18/8 sheets) per minute A4/A3 duplex
      Warm-up time
      60 seconds or less from power on
      Power consumption

      Printing: 900 W, Stand-by: 180 W, Sleep-mode: 4.5 W

      Warranty
      2 years On-Site warranty as standard
      Input capacity

      2 x 500-sheet universal paper feeder, 60-105 g/m², A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, Folio, STMT; 200-sheet multi-purpose tray, 45-200 g/m², A3-A6R, Custom (88 x 148 mm to 297 x 450 mm)

      Max. input capacity with options

      4.200 sheets A4 (with optional paper feeder PF-750)

      Duplex unit

      Double-side printing as standard; A3, A4, A4R, A5R, B4, B5, B5R, Letter, Letter-R, Legal, Ledger, 60-80 g/m²

      Processor
      PowerPC 750FL/600 MHz
      Fonts

      80 outline fonts (PCL), 136 PostScript Fonts, 1 bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417); Downloadable fonts: Kyocera, PCL + TrueType format, Type 1 + 3 format

      Features

      Job management functionality with optional hard disk HD-5 for EMPS, Proof and hold, Private print and Job storage 100 department codes for Accounting, PDF direct print via USB Flash memory device and professional finishing capabilities

      Applicable OS

      All current Windows operating systems, Mac OS X Version 10.2 or higher, UNIX, LINUX as well as other operating systems on request

      Options and Consumables

      Paper Handling Options
      • Paper Handling Options
      • Consumables
      • Options

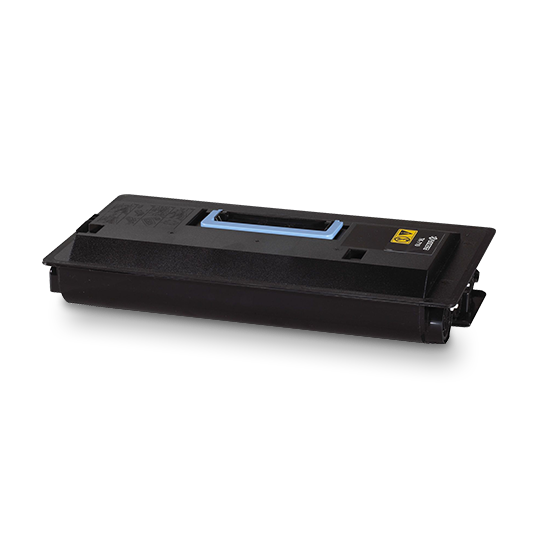

      TK-710

      Microfine toner for 40000 pages in accordance with ISO/IEC 19752
      CF-4GB

      CompactFlash® card: 4GB for printing forms, fonts, logos, macro storage and for HyPAS™ applications
      Data Security Kit

      Type C
      HD-5

      Hard disc for easy document management
      IB-11

      Serial interface, max. 115.2 kbps (RS-232C)
      IB-23

      10Base-T/100Base-TX
      KYOmulticode 1.0 Type A

      Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)
      MDDR-128

      128 MB RAM Expansion
      MDDR-256

      256 MB RAM Expansion
      MDDR-512

      512 MB RAM Expansion
      PCL Barcode Flash 3.0 Type A

      Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
      PS1109 Gigabit Printserver

      10BaseT/100BaseTX/ 1000BaseT (RJ-45)
      PS1129 Gigabit Fibre Optic

      1000BaseSX (SC)
      PS129 Fibre Optic

      100BaseSX (SC)
      PS159 Wireless LAN

      (802.11b/g/n)

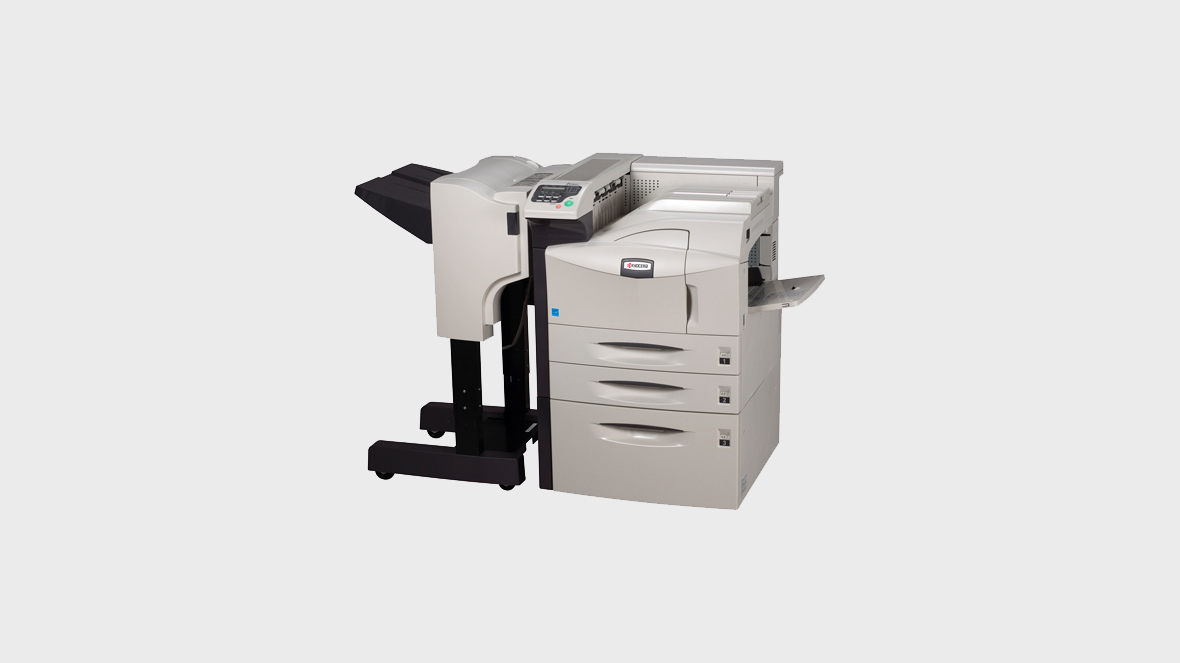

      • imagegallery-1180x663-FS-9530DN-addons-LOW-RES

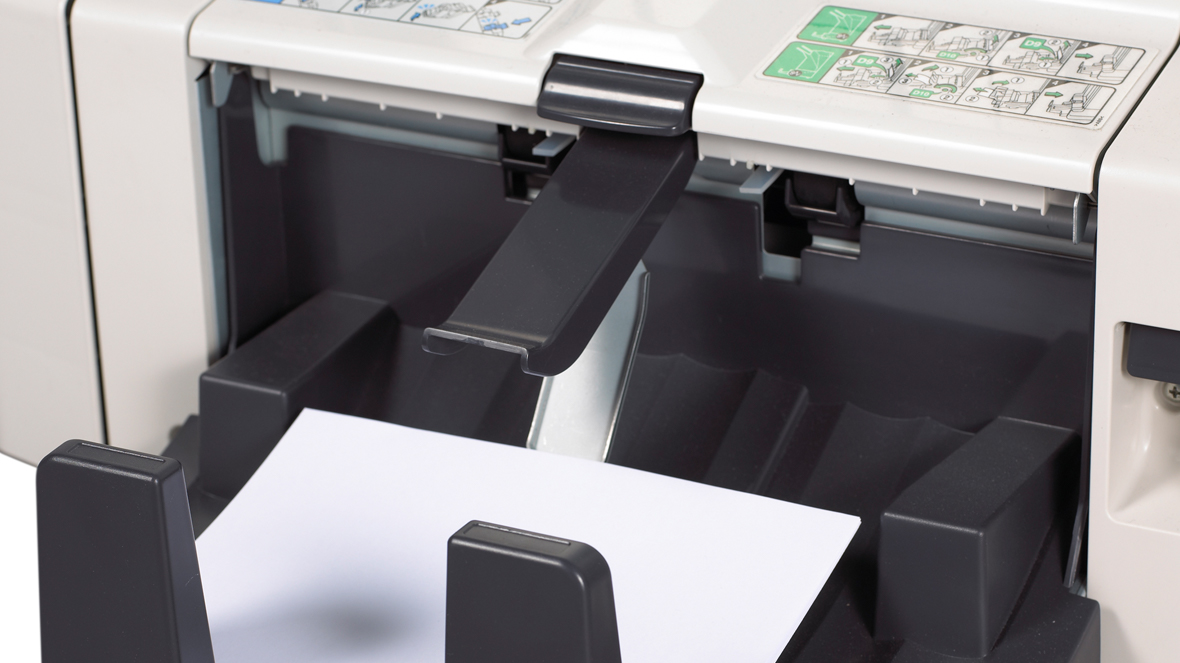

      • imagegallery-1180x663-FS-9530DN-closeup

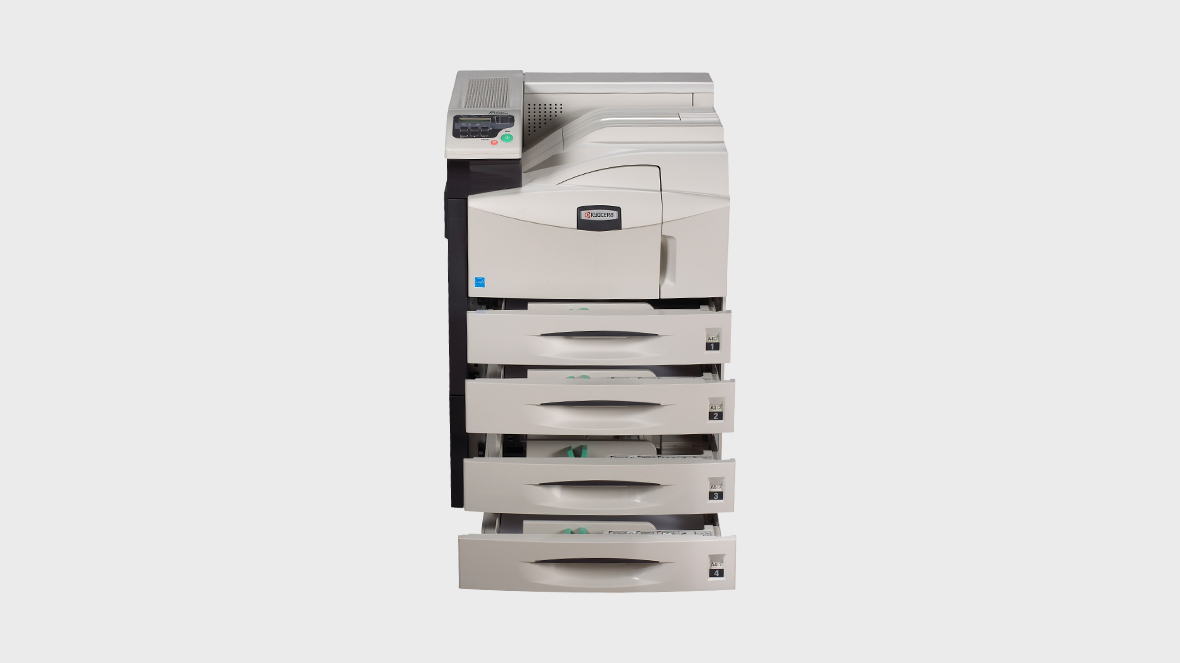

      • imagegallery-1180x663-FS-9530DN-front

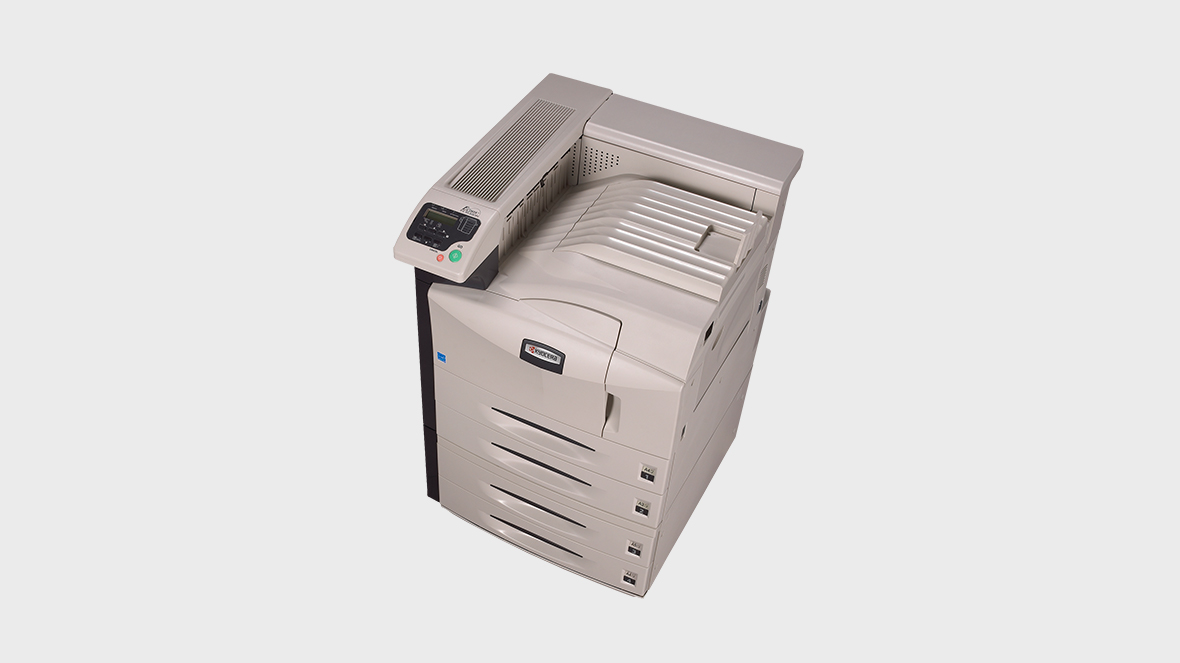

      • imagegallery-1180x663-FS-9530DN-top
