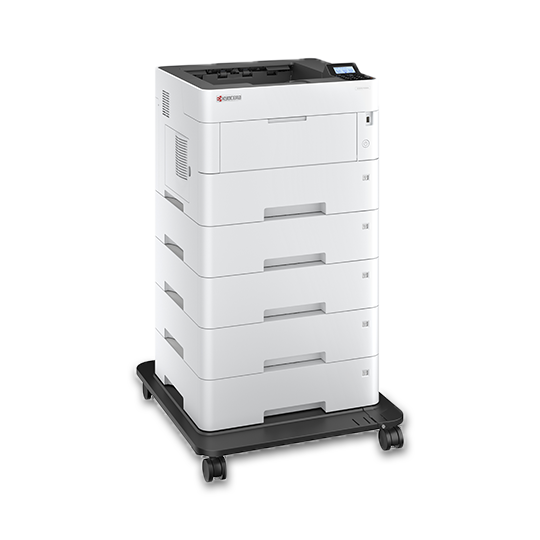

    square-540x540-product-information-ECOSYS_P4140dn_L_PF4_MAIN PAGE

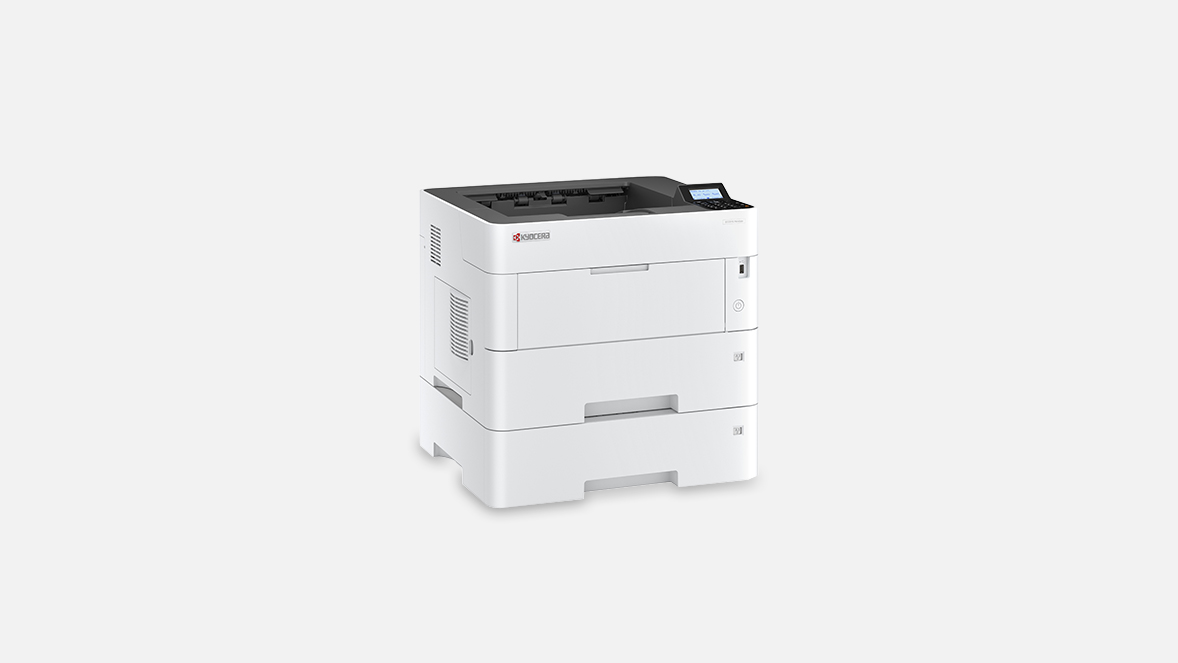

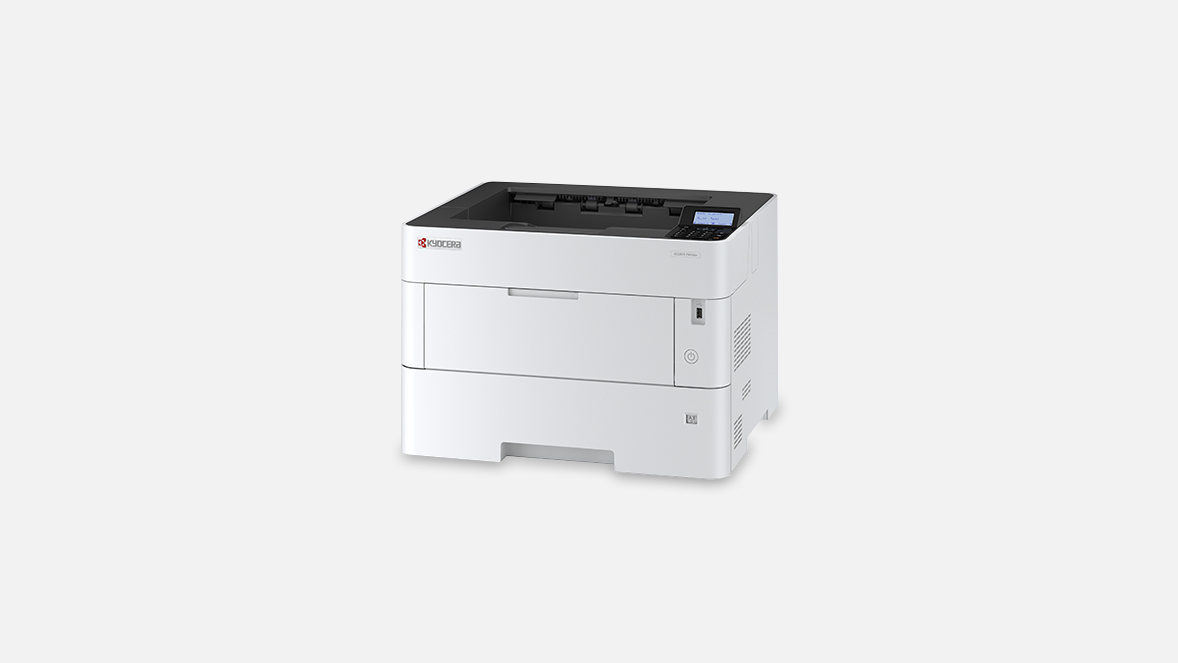

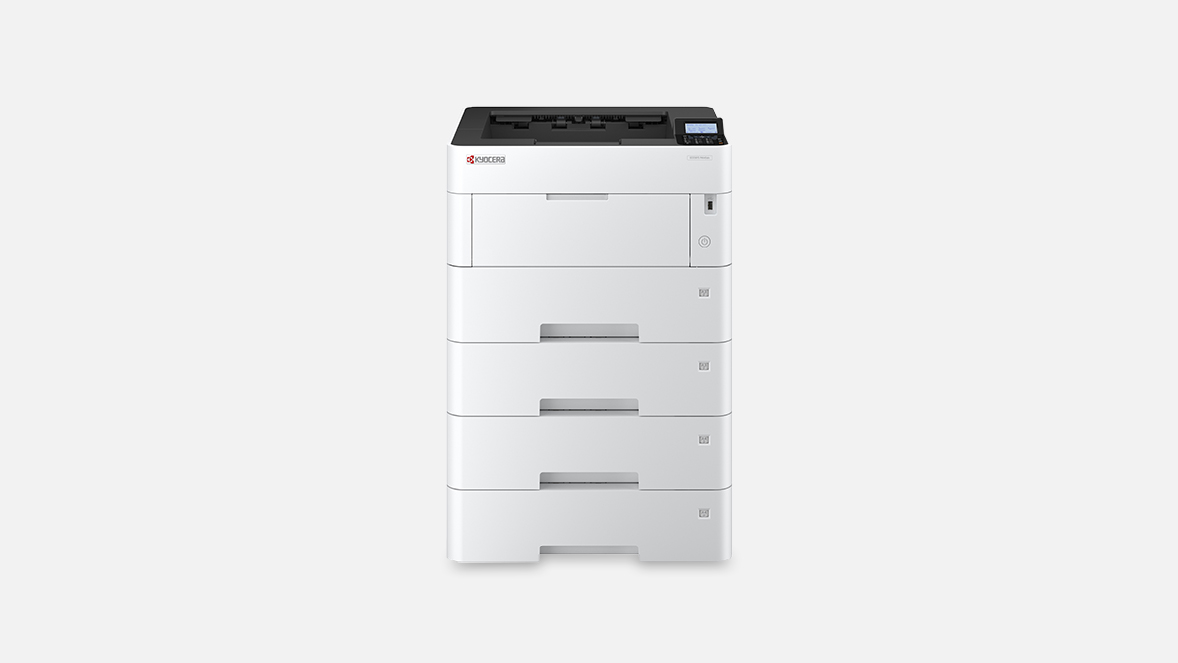

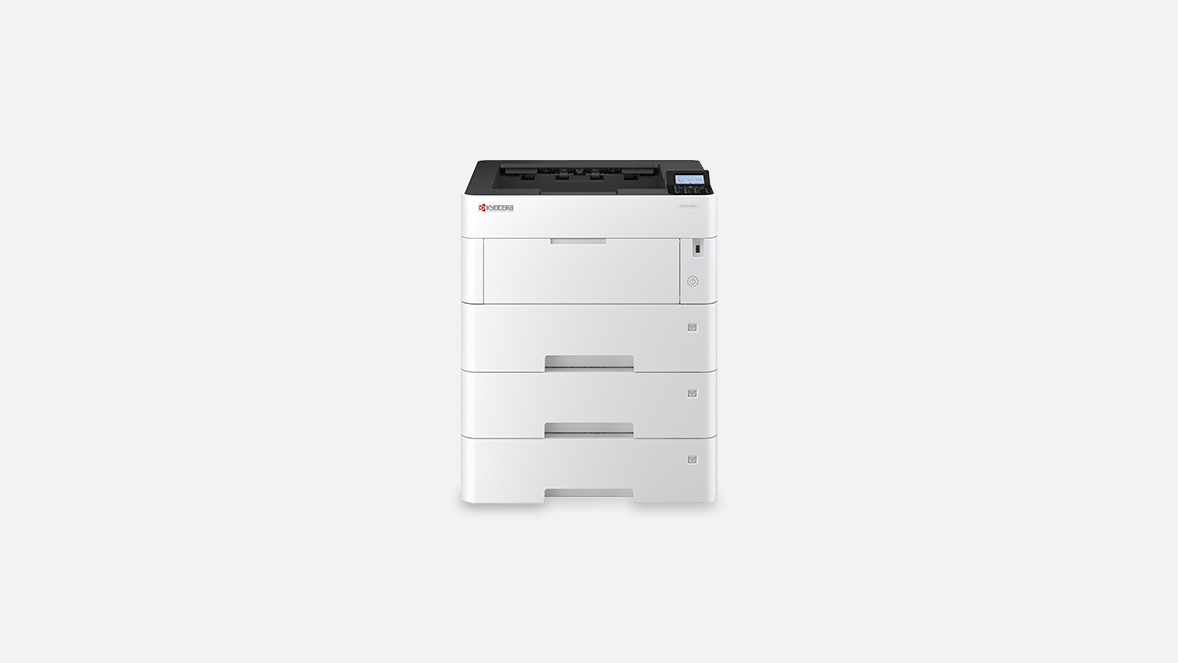

    ECOSYS P4140dn

    A printer for workgroups that require a wide variety of output sizes from A6 up to A3 and offering an expandable paper capacity of up to 6 paper trays.
    • Double-sided print.
    • Cuts your running costs down to almost nothing.
    • Beneficial for the environment with long-life components and low energy consumption.
    • Gigabit LAN and optional Wi-Fi for any network environment.

    It's time to lock down your security

    With the rise of the digital era, information security has never been greater. Implementing solutions which enhance protection are now a must.

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    square-540x540-product-information-ECOSYS_P4140dn_L_PF4_MAIN PAGE
    General type
    Monochrome printer for A3 format
    Engine speed
    Up to 40/22 pages A4/A3 per minute Duplex print speed: Up to 28 / 11 pages A4/A3 per minute
    Warm-up time
    Approx. 18 seconds or less
    Power consumption

    Print Mode: 632 W Ready Mode: 11 W Sleep Mode: 0.5 W

    Warranty
    2-year warranty as standard (depending on the country). KYOCERA guarantees the drums and developers for 3 years or maximum 500,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
    Input capacity

    Multi-purpose tray: 100 sheets, 60–220 g/m2, A3, B4, A4R, A4, A5, A6R, B5, Letter, LetterR, Legal, Ledger, Custom (70 x 148 mm to 297 x 1220 mm); Universal paper cassette: 500 sheets, 60–120 g/m2, A3, B4, A4R, A4, A5, A6R, B5, Letter, LetterR, Legal, Ledger, Custom (105 × 148 mm to 297 × 432 mm).

    Max. input capacity with options

    2,600 sheets

    Duplex unit

    Duplex as standard supports 60–120 g/m2, A3–A5R

    Max. output capacity

    500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-4100

    Processor
    Coretex-A9 1,2 GHz
    Fonts

    93 outline fonts (PCL), 136 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 79 barcodes (e. g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)

    Features

    Toner save mode, N-Up printing (multiple pages on one sheet), Duplex print (double side printing), Proof and hold for multiple set printing, Poster print (multiple sheets for one page), Banner print (up to 297 x 1220 mm), e-mail printing, Internet-Printing IPP 1.0, WSD print.

    Applicable OS

    All current Windows operating systems, MAC OS X Version 10.9 or higher, Unix, Linux, as well as other operating systems on request

    Options and consumables

    Paper handling options
    • Paper handling options
    • Options
    CA-3100

    Caster stand

    CB-7100W

    Wooden cabinet

    Card Authentication Kit (B)

    Enables the use of the ID card user authentication system

    HD-6

    32 GB for easy document management

    HD-7

    128 GB SSD hard disc for easy document management

    IB-32 B

    Parallel IEEE1284 interface kit

    IB-36

    Wireless LAN (802.11b/g/n) with Wi-Fi Direct

    IB-50

    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB51

    Wi-Fi Card (802.11b/g/n)

    KYOmulticode SD 3

    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    MD3-1024 (b)

    1,024 MB RAM Expansion

    MDDR3-2GB (b)

    2,048 MB RAM Expansion

    PCL Barcode Flash 3.0 Type D/E

    Expands the system with additional one- and two-dimensional barcodes. It also includes additional resident and machine-readable fonts (OCR-A, OCR-B).

    UG-33

    ThinPrint Kit: enables printing under ThinPrint

    USB_IC_CARDREADER

    Simplifies authentication on the system
